Characteristic



nuinTEK's Metallized film is produced using the best base film passes an severe inspection. We are starting for sale the metallized film with Experience accquire through producing for several years.
metallized film is preserving the excellent oxide-proof and capacitance change property because high vaccum metallizing makes triple layer of Zn,Al etc.



Specification (Al/Zn Metallized Polyester Film )


Al/Zn Metallized Polyester Film
Thickness(μm) Width and Tolerance (mm) Margin Width and Tolerance (mm) Outside Diameter and Tolerance (mm) Inside Diameter of Core (mm)
Labeling WMV MMV Tolerance
3.5 3.5 3.7 ± 10% below 20
: ± 0.2

21<W<35
: ± 0.3

above 35
: ± 0.5		 1.5 ± 0.4
2.0 ± 0.4
2.5 ± 0.4
3.0 ± 0.5		 Film Width
above 10:160 +10
-10

above 15:180 +10
-20

above 30:200 +10
-25
or
240 +10
-30		 75+2
-0
4.3 4.3 4.6
4.6 4.6 4.9
4.8 4.8 5.1
5.3 5.3 5.6
5.6 5.6 5.9
5.8 5.8 6.1
6.3 6.3 6.7
6.8 6.8 7.2
7.8 7.8 8.2
8.5 8.5 8.9 ± 8%
9.8 9.8 10.2
11.5 11.5 12.0
11.8 11.8 12.3
WMV : Weight Method Value MWV : Micrometer Method Value
For other thickness, please contact us

Description
Density 1.4g/㎤
Tensile Strength MD above 10Kg/m㎡
TD above 10Kg/m㎡
Elongation at Break MD above 60%
MD above 60%
Heat Shrinkage MD below 3% at 30min, 150℃
TD below 3% at 30min, 150℃
Dielectric Strength   above 250 VDC/μm
Dielectric Constant   3.1
MD :Machine Direction TD : Transverse Direction


Specification (Al/Zn Metallized Polypropylene Film)


Al/Zn Metallized Polypropylene Film
Thickness (μm) Width and Tolerance (mm) Margin Width and Tolerance (mm) Outside Diameter and Tolerance (mm) Inside Diameter of Core (mm)
Labeling MMV Tolerance
4.0 4.0 ± 10% below 20: ± 0.2

21<W<35: ± 0.3

above 35: ± 0.5		 1.5 ± 0.4
2.0 ± 0.4
2.5 ± 0.4
3.0 ± 0.5		 Film Width
above 10:160 +10
-10

above 15:
180 +10
-20

above 30:
200 +10
-25
or
240 +10
-30 		75+2
-0
5.0 5.0
6.0 6.0
7.0 7.0
7.5 7.5
8.0 8.0
9.0 9.0 ± 8%
10.0 10.0
11.0 11.0
12.0 12.0
13.0 13.0
15.0 15.0

WMV : Weight Method Value MWV : Micrometer Method Value
For other thickness, please contact us


Description
Density 0.91g/㎤
Tensile Strength MD above 13Kg/m㎡
TD above 20Kg/m㎡
Elongation at Break MD above 230%
MD above 30%
Heat Shrinkage MD below 8% at 15min, 120℃
TD below 3% at 15min, 120℃
Dielectric Strength   above 300 VDC/μm
Dielectric Constant   2.2
MD :Machine Direction TD : Transverse Direction


Specification (Al/Zn Metallized Polyester Film/ Polypropylene Film)

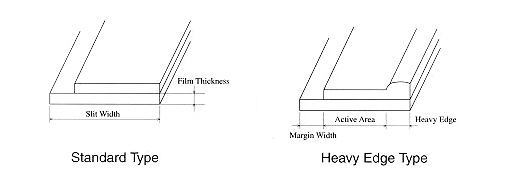

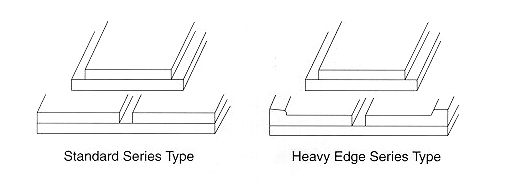

 Structure and Resistance
Type Resistance(Ω/□) Metallized Pattern
MPP MPET
PTS-D ETS-D 2.0 ± 0.7 Standard Type
PTS-A ETS-A 3.5 + 1.5
- 1.0		 Standard Type
PTR-A ETR-A Heavy Edge 3.0 ± 1.5 Heavy Edge Series Type
Active Area 7.5 + 4.0
-2.0
PTS-AO ETS-AO 3.5 + 1.5
- 1.0		 Standard Type
PTR-AO ETR-AO Heavy Edge 3.0 ± 1.5 Heavy Edge Series Type
Active Area 7.5 + 4.0
-2.0

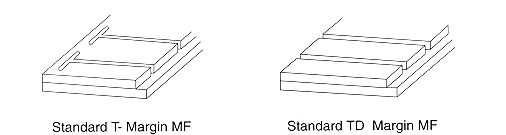

Specification (Al/Zn Metallized Safety Functional Film)

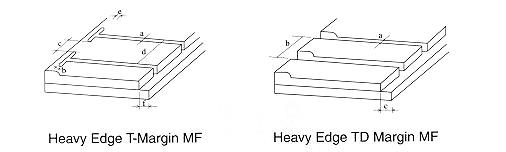

Heavy Edge T-Margin MF   Heavy Edge TD Margin MF
Mark Specification
a 0.3mm
b 0.5mm
c 0.5mm
d 18.0mm
e 2.0mm
f 1.5,2.0,2.5,3.0mm
MF Width 30,40,50mm

Mark Specification
a 0.3mm
b 18.0mm
c 1.5,2.0,2.5,3.0mm
d 20~100mm
For other width and margin width,Please contact us.

Specification (Al Metallized Ployester Film)


Al Metallized Ployester Film
Thickness (μm) Width and Tolerance (mm) Margin Width and Tolerance (mm) Outside Diameter
and Tolerance (mm)		 Inside Diameter of Core (mm)
Labeling WMV MMV Tolerance
1.4 1.4 1.6 ± 10% below 20: ± 0.2

21<W<35: ± 0.3

above 35: ± 0.5		 1.0 ± 0.2
1.5 ± 0.4
2.0 ± 0.4
2.5 ± 0.4
3.0 ± 0.5		 160 + 10
- 20		 75+2
-0
1.8 1.8 2.0
2.0 2.0 2.2
2.2 2.2 2.4
2.5 2.5 2.7
2.7 2.7 2.9
3.0 3.0 3.2
3.5 3.5 3.7 Film Width
above10:160+10
-10

above15:180+10
-20

above30:200+10
-25
or
240 +10
-30
4.3 4.3 4.6
4.6 4.6 4.9
4.8 4.8 5.1
5.3 5.3 5.6
5.8 5.8 6.1
6.3 6.3 6.7 ± 8%
6.8 6.8 7.2
7.8 7.8 8.2
8.5 8.5 8.9
9.8 9.8 10.2
11.5 11.5 12.0
11.8 11.8 12.3
WMV : Weight Method Value MWV : Micrometer Method Value
For other thickness, please contact us.

Description
Density 1.4g/㎤
Tensile Strength MD above 10Kg/m㎡
TD above 10Kg/m㎡
Elongation at Break MD above 60%
MD above 60%
Heat Shrinkage MD below 3% at 30min, 150℃
TD below 2% at 30min, 150℃
Dielectric Strength   above 250 VDC/μm
Dielectric Constant   3.1
MD :Machine Direction TD : Transverse Direction


Specification (Al Metallized Ploypropylene Film)


Al Metallized Ploypropylene Film
Thickness (μm) Width and Tolerance (mm) Margin Width and Tolerance (mm) Outside Diameter and Tolerance (mm) Inside Diameter of Core (mm)
Labeling MMV Tolerance
4.0 4.0 ± 10% below20: ± 0.2

21<W<35: ± 0.3

above35: ± 0.5		 1.0 ± 0.2
1.5 ± 0.4
2.0 ± 0.4
2.5 ± 0.4
3.0 ± 0.5		 below 15 :160 +10
-20
above 16 :180 +10
-20		 75+2
-0
5.0 5.0 Film Width
above 10 : 160 +10
-10

above 15 : 180 +10
-20

above 30 : 200 +10
-25
or
240 +10
-30
6.0 6.0
7.0 7.0
7.5 7.5
8.0 8.0
9.0 9.0 ± 8%
10.0 10.0
11.0 11.0
12.0 12.0
13.0 13.0
15.0 15.0
WMV : Weight Method Value MWV : Micrometer Method Value
For other thickness, please contact us

Description
Density 0.91g/㎤
Tensile Strength MD above 13Kg/m㎡
TD above 20Kg/m㎡
Elongation at Break MD above 230%
TD above 30%
Heat Shrinkage MD below 8% at 15min, 120℃
TD below 3% at 15min, 120℃
Dielectric Strength   above 300 VDC/μm
Dielectric Constant   2.2
MD :Machine Direction TD : Transverse Direction


Specification (Al Metallized Polyester Film/ Polypropylene Film)


Structure and Resistance
Type Resistance(Ω/□) Metallized Pattern
MPP MPET
PAS-D EAS-D 1.5 ± 0.45
or 2.0 ± 0.7		 Standard Type
PAS-A EAS-A 3.5 + 1.5
3.5 - 1.0		 Standard Type

Slit Width and Margin
Slit Width
(mm)		 Margin(mm) Slit Width
(mm)		 Margin(mm)
1.0 1.5 2.0 2.5 3.0 1.0 1.5 2.0 2.5 3.0
6.5 Ο Ο Ο Ο Ο 18.5   Ο
4.0 Ο Ο Ο     19.0 Ο Ο
7.5 Ο         20.0 Ο Ο Ο Ο Ο
8.0 Ο   Ο   Ο 21.0 Ο     Ο
9.0 Ο Ο Ο     23.0     Ο
10.0 Ο Ο Ο Ο Ο 25.0 Ο Ο Ο Ο Ο
12.0   Ο   Ο   26.0   Ο   Ο
13.5 Ο Ο Ο     30.5 Ο Ο Ο Ο Ο
14.0 Ο Ο Ο     43.0 Ο Ο Ο Ο
15.0 Ο Ο Ο Ο Ο 50.0 Ο Ο Ο Ο Ο
For other width and Margin, ploase contact us.


Electrical Properties of Capacitor


Capacitance Change by Temperature issipation Factor Change by Temperature 50Hz

Dissipation Factor Change by Temperature 1KHz Insulation Resistance Change by Temperature

Shrinkage in Machine and Transverse Direction Shrinkage in Machine and Transverse Direction

Outside diameter and length on Reel Material Consumption
(Strandard Capacitor:Assessed Value)



Marking and Packing

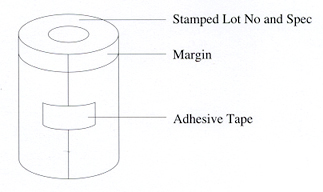

Roll
Each roll has its own original Lot No. and its specification stamped with ink which has no position on the margin side of the roll. The loss end of the film is held in place by adhesive tape.

Label Print
There shall be the following description on the label.
   Specification(Thickness x Slit width x Margin)
   Type
   Lot No.
   Weight


Vacuum Packing
Each stacked pair is separated by plastic foam order to protect the electrode side. The piled rolls are packed in plastic bags with damp proof. After removal of the air, the bags are heat sealed.

Carton Box
The plastic bags are packed into carton box.

Outer Packing For Sea Freight
The carton boxes are put into wooden pallet and palletized with outcase for sea shipment.



Storage Conditions and Warranty Period



Storage Conditions

All types of metallzed films which made by nuinTek should be stored in nuinTek's original packing and kept from vibration and direct sunshine. Temperature and humidity should be maintained for 15~25℃ and 65% RH respectively. Note that since a thin metallized layer is likely to be easily oxidized in the presence of moisture, the rolls shall be used as soon as possible following of the package.



Warranty period

nuinTek gurantees the quality of all types of metallized film made by nuinTek for six months following the shipment date from Korea provided that the rolls are unopened, in their original packing, and stored as described in section Storage Conditions.



Ordering Guide

All metallized film of nuinTek's type shall be represented in the following format. Type, thickness(μm) x Slit width(mm) x Free Margin(mm), Resistance, Outside Diameter. Ex : PAS-D, 5μm x 30mm x 2mm, 2.0 Ω/□ ,180 Φ



How to Describe Lot No.

Lot No. is describe as follows.
①②③④⑤⑥⑦⑧
① : The number of machine
② : Production year
③④ : Production month
⑤⑥ : Production date
⑦⑧ : Batch number
