Characteristic



Plastic Box Type are Metallized polypropylene Capacitors designed primarily for use in Motor run applications. They are also use in AC power supplies, fluorescent Lamp and other circuits. The low dielectric losses, the inherent "Self-healing" property, and the greatly increased microfarad per unit volume make these designs ideal where reliability and small size are essential.



Specification



 1. Capacitance : 1~ 18mfd
2. Capacitance tolerance
Capacitance tolerance Symbol
- 5% to +20% W
- 10% to +10% K
- 5% to +10% U
- 5% to + 5% J

3. Rated frequency : 50Hz and/or 60Hz
4. Rated voltage : 220~450VAC
5. Ambient temperature : -25 to +80℃
Ambient temperature Symbol
-25℃ to +55℃ L
-25℃ to +65℃ X
-25℃ to +70℃ M
-25℃ to +80℃ H

6. Withstanding Voltage Test
Test Portion Test Voltage
(Effective value)[VAC]		 Applying time
Between terminals
mutally		 Rated Voltage X 1.75 10 or 60 sec
Between terminals
(tied together) and case		 Rated Voltage X 2+1000 (Min.2000VAC) 10 or 60 sec

7. Insulation resistance
Between the collected terminals and the case, 2000㏁ or greater
8. Dissipation factor
Below0.15% or0.35% under rated voltage, at60Hz, 20℃ or 75℃
9. Sealability
Test Condition Liquid
Heating Temperature Ambient temp.+5℃ (minimum 75℃)
Heating time 20 minutes
Thermostatic apparatus Thermostatic oil bath
Result No continuous bubbles

Reference Standard : KS C 4805 and JIS C 4908.

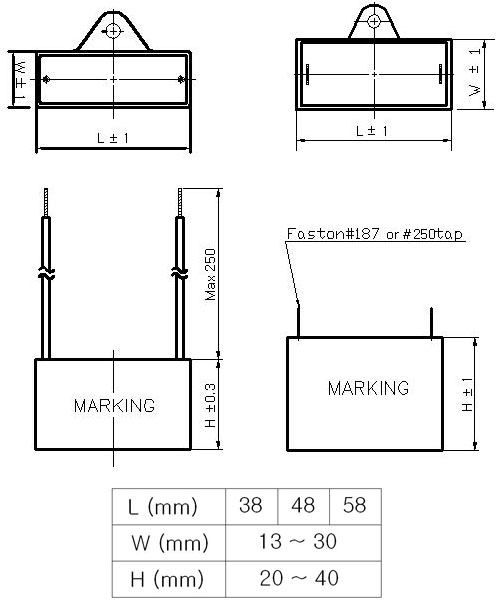

Drawing





Table


Rated 250VAC 300VAC 350VAC 400VAC 450VAC
Capacitance(㎌) Dimension(mm) Dimension(mm) Dimension(mm) Dimension(mm) Dimension(mm)
(mfd) Φ Height Φ Height Φ Height Φ Height Φ Height
3.5 25 45 30 45 30 45 30 45 30 55
4.5 25 45 30 45 30 45 30 55 30 65
5.0 30 45 30 45 30 45 30 55 30 65
8.0 30 55 30 65 30 65 35 55 35 65
10 30 55 30 75 30 75 35 65 40 65
15 35 55 35 75 35 90 35 90 40 90
20 35 65 40 65 40 90 40 90 40 115
25 40 65 40 75 45 75 45 75 45 115
30 40 65 45 75 45 90 45 90 45 115
35 40 75 45 90 45 115 45 115 50 115
40 45 65 45 90 45 115 45 115 50 115
45 45 75 45 115 50 115 50 115 . .
50 45 90 50 90 50 115 50 115 . .
55 45 90 50 90 50 115 50 115 . .
60 45 90 50 115 . . . . . .
65 50 90 50 115 . . . . . .
70 50 90 50 115 . . . . . .
75 50 90 50 115 . . . . . .
80 50 90 . . . . . . . .
* Specifications subject to change without notice
